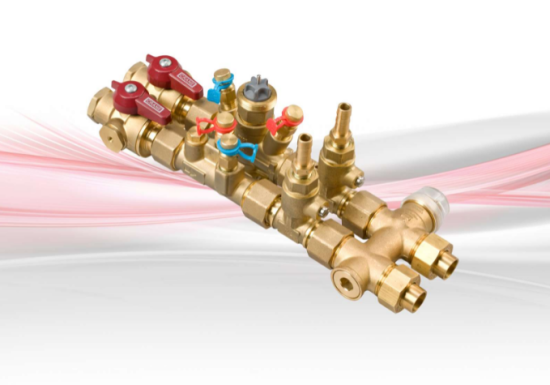

Van CRANE (UK) DD40BSS4B Dominator Peak Pro with PICV, BSRIA Flushing Drain & 4-Port

Giá:Gọi để biết giá

DD40BSS4B
DN15/15
Dominator Peak Pro with PICV, BSRIA Flushing Drain & 4-Port

Features & Benefits
- Compact design, with flow and return legs at equal lengths, for simple direct mounting onto terminal unit
- Fitted with Peak Pro with a wide range of settable flows to suit all applications
- Includes Venturi metering station for improved accuracy and pressure drop recovery
- All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve
- Bypass unit with integrated 3-way isolation valves
- Flushing valves on flow and return - in accordance with BSRIA BG29
- Integrated dial allowing for calibrated setting of the PICV with integrated test points allowing for ΔP verification
- 4-Port valve included to provide a constant flow rate irrespective of load demand. Suitable for minimum flow and end-of-line applications

THÔNG TIN SẢN PHẨM

Size

DN15/15

Centre Size

40mm

Pressure Rating

PN16

Temperature Rating

0 to 90°C

End Connections

H-Body – BSP Taper
Terminal end – Compression/Solder

DATASHEET: Dominator_PeakPro_4Port_DN15_+DS_Crane+FS_090818
