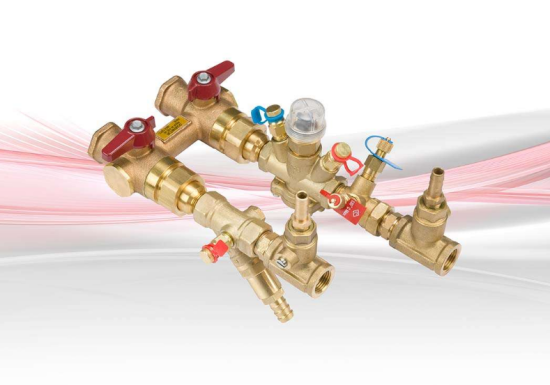

Van CRANE (UK) Z9601PF Dominator Peak Pro with PICV, Strainer Drain, FMD & Flushing Drains

Giá:Gọi để biết giá

Z9601PF
DN15/15 to DN25/20
Dominator Peak Pro with PICV, Strainer Drain, FMD & Flushing Drains

Features & Benefits
- Compact, pre-fabricated unit – now available with Peak Pro PICV with a wide range of settable flows to suit all applications
- All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve
- Provides accurate flow rates & differential pressure control as well as flow measurement (Z9601PF), system flushing and isolation
- DZR H Body tested to 3.1X Design Working Pressure (DWP)and bronze H Body tested to 3.9 X DWP during development for design robustness and tested to EN12516-2 to comply with the Pressure Equipment Directive (PED)
- Fully assembled & factory tested unit reduces installation time, costs and specification risks
- The D995 PICV is available in 400kPa and 800kPa rated variants
- On-Off, modulating or feedback actuators are available separately to match specification

THÔNG TIN SẢN PHẨM

Size

DN15/15 to DN25/20

Centre Size

80mm

Pressure Rating

PN16

Temperature Rating

-10 to 100°C

End Connections

Flushing By-pass body – BSP Taper
Strainers & Tailpieces – BSP Taper

DATASHEET: Z9601PF_Dom_Crane+FS_DS_1020
